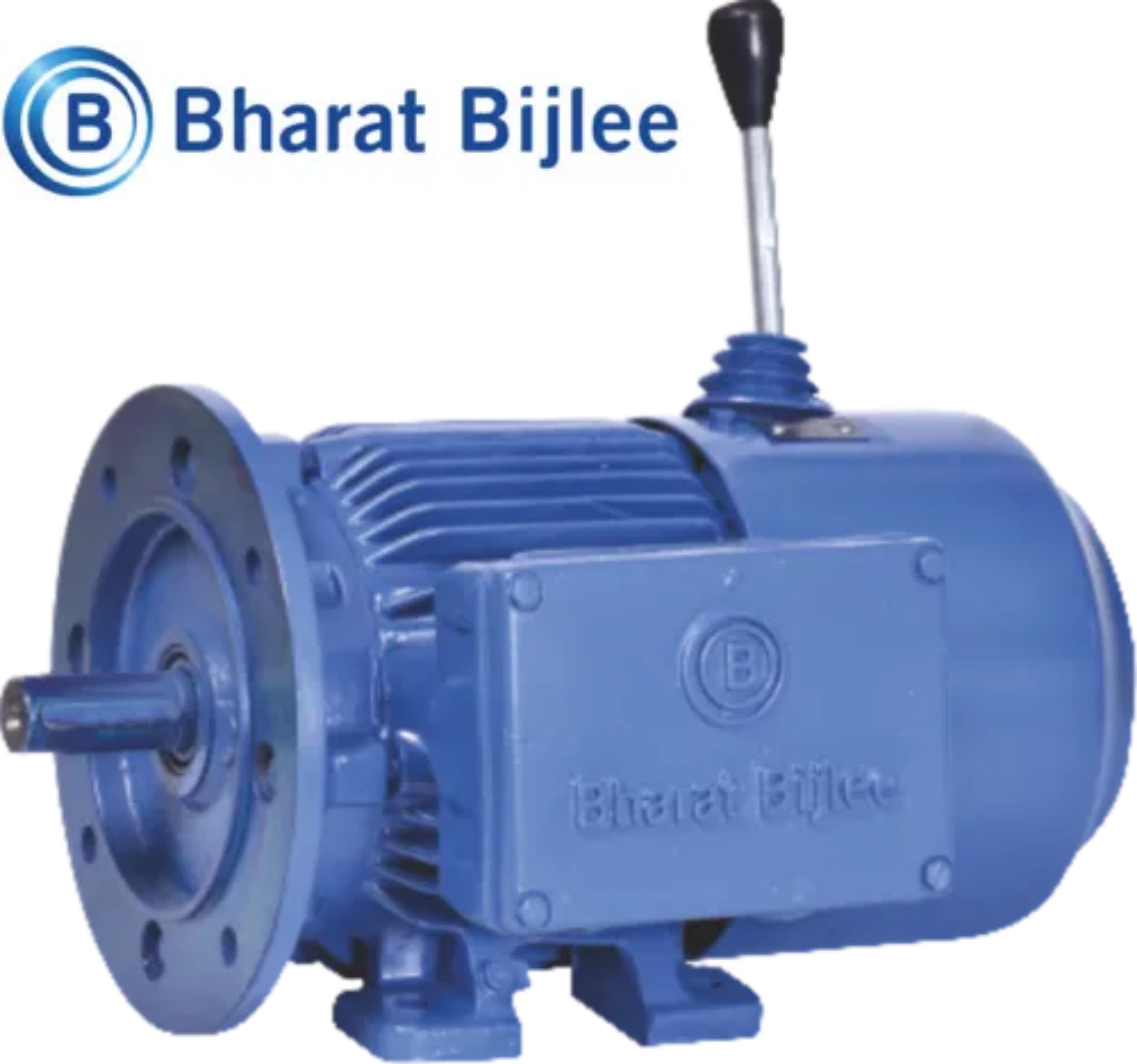

Bharat Bijlee 1400 rpm Three Phase 0.5 hp Double Pole Flange Mounted AC Motors_0
Hover to zoom
Bharat Bijlee 1400 rpm Three Phase 0.5 hp Double Pole Flange Mounted AC Motors_0
Need help?
Call +91 8291 211 421
(9:15AM – 6:15PM from Monday – Friday)

Bharat Bijlee 1400 rpm Three Phase 0.5 hp Double Pole Flange Mounted AC Motors

Copy link

Offers

Get GST invoice and save up to 28% on business purchases.
Get GST invoice and save up to 28% on business purchases.
assured-delivery

Assured Delivery

assured delivery Assured Delivery
7_Days_return

7 Days Return

7 days return 7 Days return
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

7 Days Return

7 Days Return

7 days return

Payment Protection


Specifications

Brand

Bharat Bijlee

Number of Phase

Three Phase

Rated Power

0.5 hp

Mounting

Flange Mounted

Number of Poles

Double Pole

Rotational Speed

1400 rpm

Body Material

Cast Iron

IP Rating

IP55

Standard

IS 5572

Type

Brake

Voltage

220 V

UNSPSC No.

26101602

Description

Brake Motors are offered for various applications requiring almost instantaneous stopping of driven load. These motors are offered in frame sizes 71 to 132M. Their operation is of ‘fail safe’ type, i.e...

Read More

Brake Motors are offered for various applications requiring almost instantaneous stopping of driven load. These motors are offered in frame sizes 71 to 132M. Their operation is of ‘fail safe’ type, i.e., the brake is applied when, power to the motor is switched off, or, if power failure occurs. A Brake Motor is an integral combination of an A.C. induction motor and a disc type, fail safe, electromagnetic brake unit. it consist of following: i) A.C. induction motor. ii) Encapsulated brake coil housed in the nondriving end End-shield. iii) Brake liner attached to the armature disc at its interface with the cooling fan. iv) Cooling fan. v) The rectifier unit is provided inside the Terminal Box. it converts A.C. supply into D.C. supply for the Brake coil.

Read less

Brake Motors are offered for various applications requiring almost instantaneous stopping of driven load. These motors are offered in frame sizes 71 to 132M. Their operation is of ‘fail safe’ type, i.e., the brake is applied when, power to the motor is switched off, or, if power failure occurs. A Brake Motor is an integral combination of an A.C. induction motor and a disc type, fail safe, electromagnetic brake unit. it consist of following: i) A.C. induction motor. ii) Encapsulated brake coil housed in the nondriving end End-shield. iii) Brake liner attached to the armature disc at its interface with the cooling fan. iv) Cooling fan. v) The rectifier unit is provided inside the Terminal Box. it converts A.C. supply into D.C. supply for the Brake coil.

Read More Read less

Country of Origin

India


Shipped by
L&T-SuFin
Sold by
Nutech transmissions india

3.0

3.0/5

How is the score calculated?

L&T-SuFin determines this score through regular monitoring of the seller's performance based on parameters like:

Rating given by buyers

Quality of order servicing

Timely repayment to lender*

On time
delivery

*if applicable

Click on ‘Request Quote for Bulk’ button to enter your requirements like quantity, expected delivery date ,pin code and submit
Receive and compare quotes from multiple sellers
Accept the best quote to confirm your order
Note: Sellers respond to a quote in 24-48 hours. You will be notified via e-mail/SMS/WhatsApp.
To know how to raise RFQ for more than one product, Please click here
Need help?
Call +91 8291 211 421
(9:15AM – 6:15PM from Monday-Friday)
